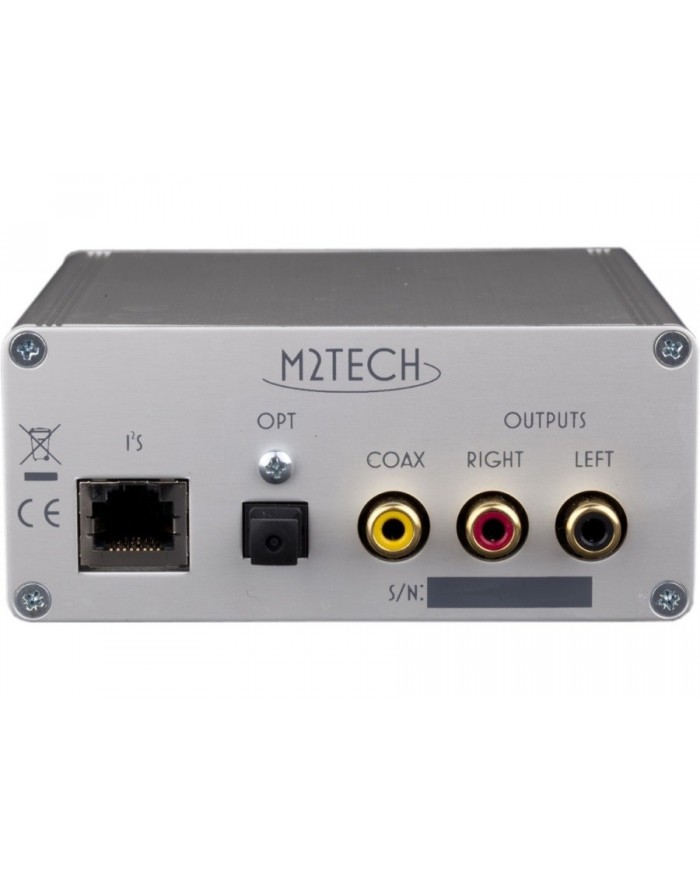

EvoDac D/A Converter for hiFace EVO USB to Coax and SPDIF Converter
192kHz, 32 bits conversion, 32 bit I2S connection for use with HiFace Evo, coaxial S/PDIF and optical Toslink connections for compatibility, single-ended analog output on gold plated RCA, same form factor as HiFace Evo and Evo Supply, can be powered by Evo Suplly or by the wall adaptor included in the package.
Evo DAC is a cost-effective digital-to-analog converter capable of
192kHz/32bits operation when driven on its I2S input. 192kHz/24bits
operation is available on its coaxial S/PDIF input, while 96kHz/24bits can
be achieved when using the legacy Toslink input, included for
compatibility towards many digital sources. The best way to
operate Evo DAC is in partnership with the hiFace Evo to play hi-rez files
from a computer. By connecting the two units in I2S with a CAT-5
straight cable, a virtually zero-jitter chain is implemented, from the
computer to the DAC, for unbelievable sonic results by such an
affordable solution. Evo DAC is a great unit even when used as a normal
DAC by driving it on its S/PDIF input: the receiver’s great performance in
reducing the jitter leads to sonic results which are unexpected by
equipment in this price range. Polypropylene capacitors and a low
noise, low distortion opamp on the output buffer exalt the performance
of the conversion IC. A modular system, based on an Evo DAC, an hiFace
Evo and an Evo Supply, eventually built during time, makes for a nearly
hi-end digital source at an affordable price!
Size: 105(w) x 46(h) x104(d) mm
Weight: 350g (approx.)
Sampling Frquencies (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Resolution (bits): up to 32 (I2S), up to 24 bits (S/PDIF)
Inputs: I2S on 8-ways RJ-45, S/PDIF on RCA, S/PDIF on Toslink
Outputs: single-ended line level on RCA
Output voltage: 2.7Vrms
THD+N: 0.002 @ 1kHz, 0dBFS
SNR: 118dB (A weighted)
Supply voltage: 9V
Supply current: 350mA
Teknik ve kozmetik olarak en küçük kusuru yoktur,
sıfır ile eşdeğerdir,
mağazamızda (test edebilir) dinleyebilirsiniz.
Tüm Türkiye,ye YURTİÇİ KARGO ile
(Tarafımızdan profesyonelce paketlenip)
%30 indirimli (sigortalı) gönderi yapılır.
TAKAS : EVET
Shipping (Fedex) is done worldwide. Please ask shipping costs.
