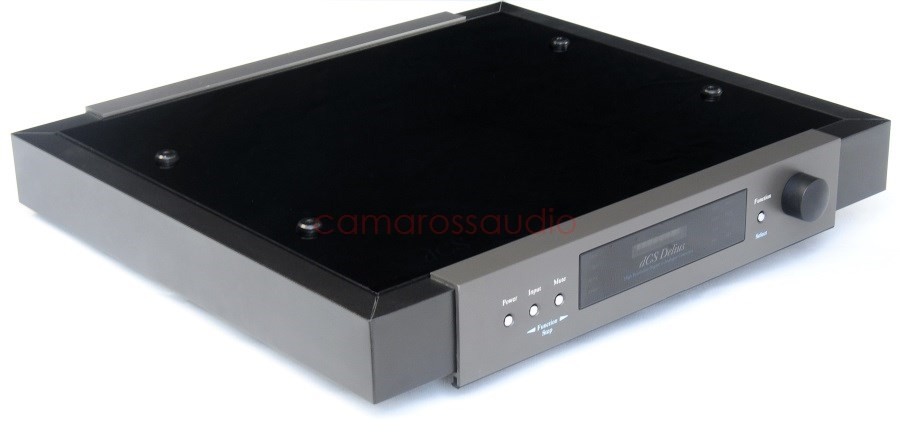

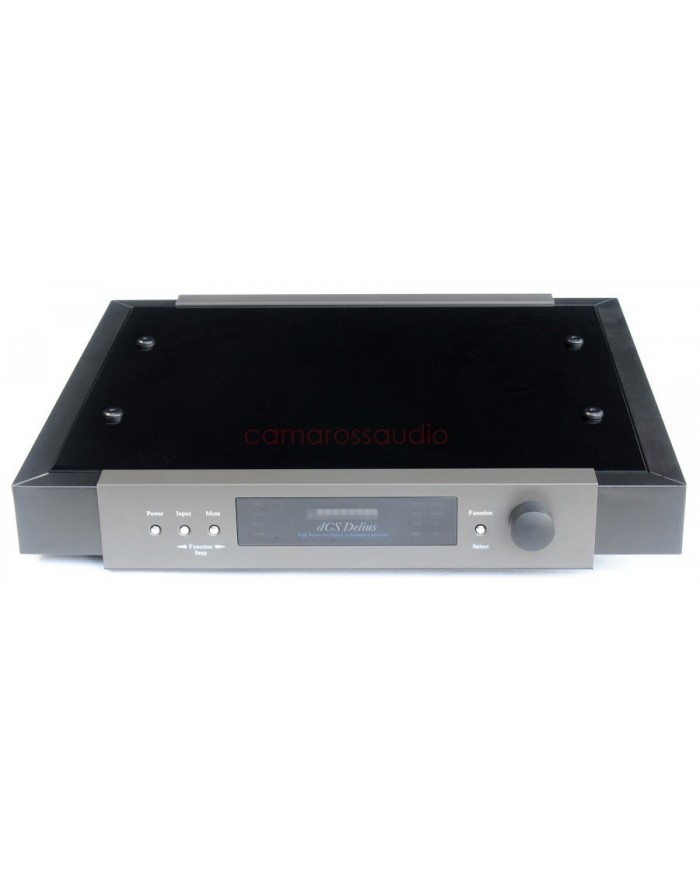

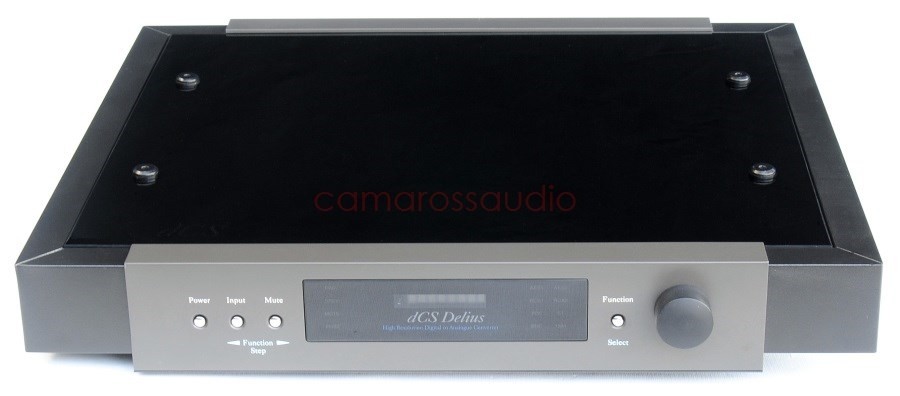

DCS Delius Dac
| Current Software Version | 2.21 | ||
| Input Sample Rates | PCM Mode: | 32, 44.1, 48, 88.2, 96,176.4 and 192kS/s | |
| DSD Mode: | 2.822MS/s | ||
|
|
|||
| Analogue Outputs | Balanced Outputs: | Balanced, ground referred | |
| Output Impedance: | 1 ohm | ||
| Level for full scale: | +17.8dBu (6v) (600R load) - o/p switch high level | ||
| +8.2dBu (2v) (600R load) - o/p switch low level | |||
| Connectors: | XLR3 male | ||
| Connections: | Pin 1: Ground or shield | ||
| Pin 2: + Signal | |||
| Pin 3: - Signal | |||
| Unbalanced Output: | Single ended, ground referred | ||
| Output Impedance: | 1 ohm | ||
| Level for full scale: | +17.75dBu (6v) (600R load) - o/p switch high level | ||
| +8.2dBu (2v) (600R load) - o/p switch low level | |||
| Connectors: | RCA Phono | ||
| * 0dBu = 0.775V rms | |||

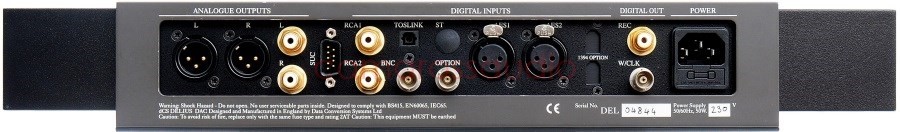

| Digital Inputs | Format | Connector | Quantity |
| AES/EBU | XLR , male | 2 | |
| SPDIF (IEC958) | RCA, phono | 2 | |
| SPDIF (IEC958) | BNC | 1 | |
| SPDIF (IEC958) | Toslink optical | 1 | |
| SPDIF (IEC958) | ST optical* | 1 | |
| SDIF-2 | BNC | 1 | |
| IEEE1394* | 6 pole IEEE1394 | 2 | |
| *optional | |||
| Digital Interface Specifications | |||
| AES/EBU Interface: | Type: | Balanced differential | |
| Impedance: | 110 ohms | ||
| Sensitivity (unloaded): | 1 to 10V p-p | ||
| Maximum Word Length: | 24 bits | ||
| Sample Rates: | Single AES 96kS/s | ||
| Dual AES 192kS/s | |||
| Connector: | XLR3 female | ||
| Connections: Pin 1 Pin 2 Pin 3 |
Ground or shield + Signal - Signal |
||
| Coaxial SPDIF(IEC958) Interfaces: | Type: | Single ended, ground referred | |
| Impedance: | 75 ohms | ||
| Sensitivity (unloaded): | 0.5V p-p | ||
| Maximum Word Length: | 24 bits | ||
| Sample Rates: | 96kS/s | ||
| Connectors: | RCA & BNC | ||
| Optical SPDIF(IEC958) Interfaces: | Type: | Toslink optical, EIAJ-CP340 | |
| Maximum Word Length: | 24 bits | ||
| Sample Rates: | 96kS/s | ||
| Type: | ST Optical | ||
| Maximum Word Length: | 24 bits | ||
| Sample Rates: | 96kS/s | ||
| Word Clock: | Type: | Single ended, ground referred | |
| Impedance: | 100 ohms | ||
| Sensitivity (unloaded): | TTL | ||
| Maximum Sample Rate | 48kHz | ||
| Connectors: | BNC | ||
| IEEE1394 Interface: | Type: | IEEE1394 | |
| Data Rate - DSD Mode: | 2.822MS/s per channel | ||
| Digital Outputs | Format | Connector | Quantity |
| Record Output (IEC958) | RCA, phono | 1 | |
| Word Clock | BNC | 1 | |
| Digital Output Interface Specifications | |||
| Record Output | Type | Single ended, ground referred | |
| Impedance | 75 ohms | ||
| Sensitivity (unloaded) | 1V pk-pk | ||
| Maximum Word Length | 24 bits | ||
| Maximum Sample Rate | 96kS/s | ||
| Connector | RCA, Phono | ||
| Word Clock | Type | Single ended, ground referred | |
| Impedance | 25 ohms | ||
| Sensitivity (unloaded) | TTL | ||
| Maximum Sample Rate | 48kHz | ||
| Connector | BNC | ||
| Size and Weight: | Width: | 461mm (18.15") | |
| Height: | 68mm (2.68") | ||
| Depth: | 420mm (16.54") | ||
| Weight (packed): | 8.5kg | ||
