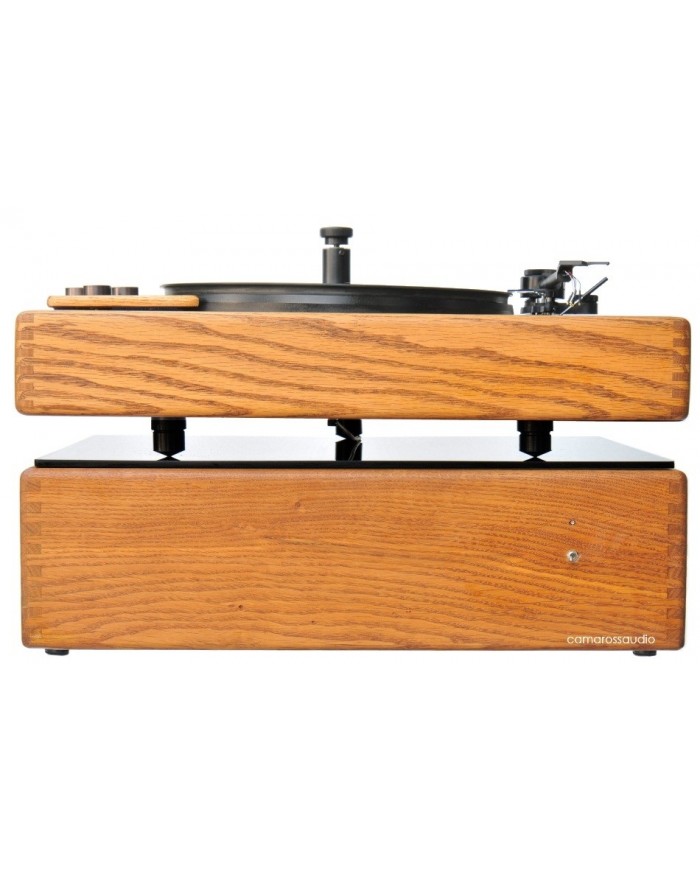

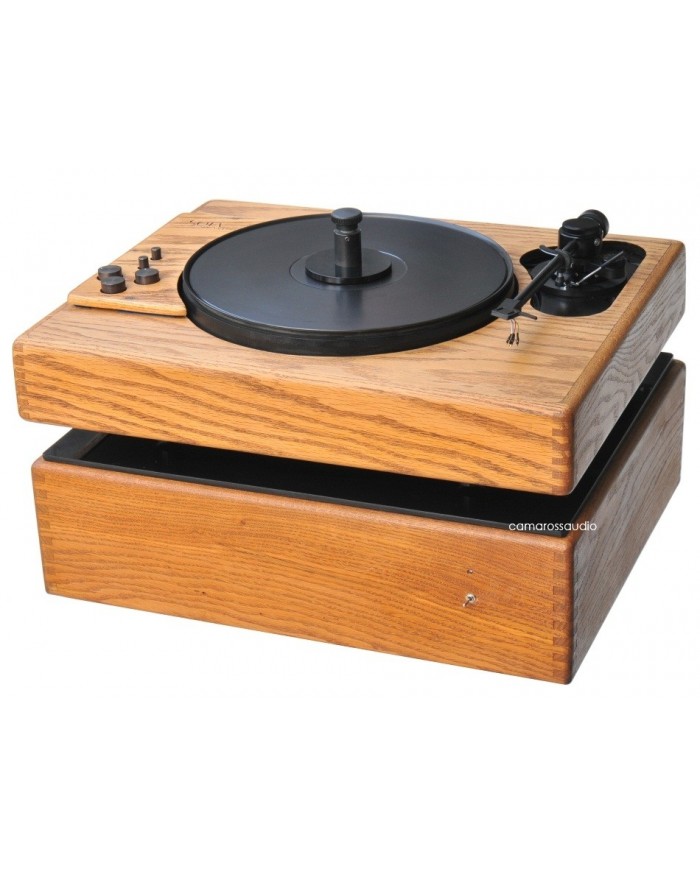

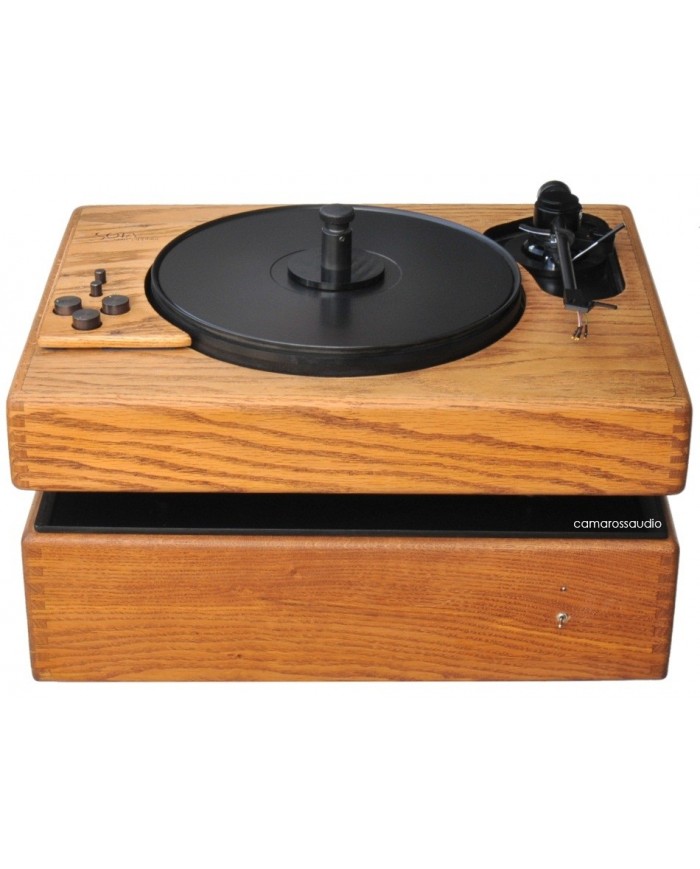

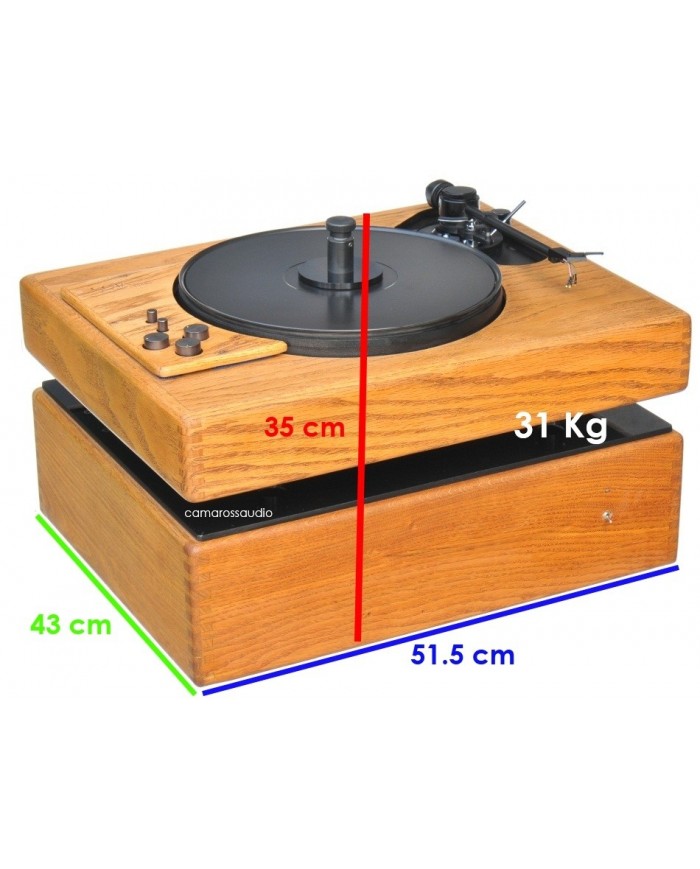

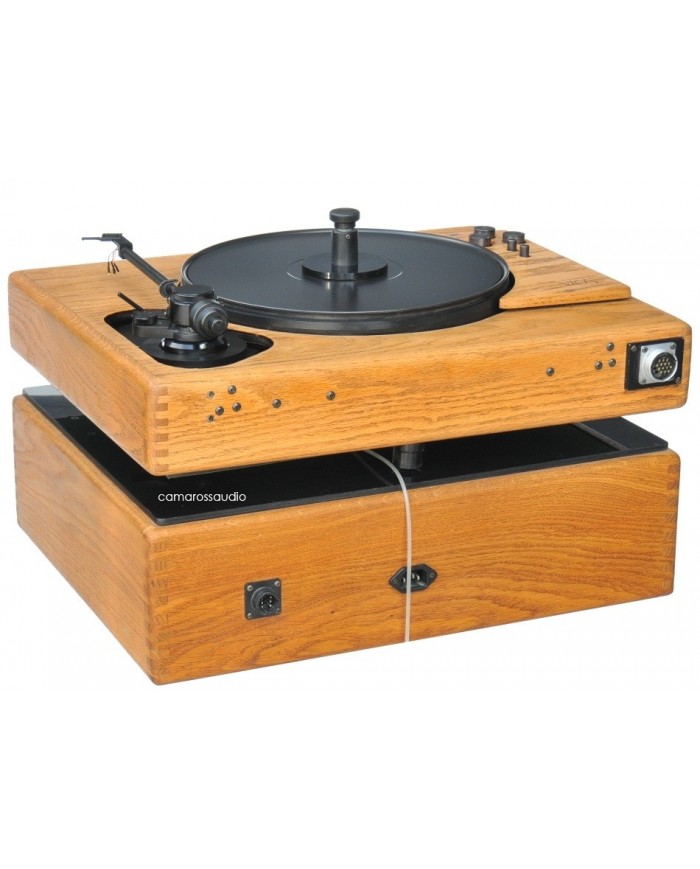

Sota Star Sapphire

Crafted in the USA

Self-sensing vacuum hold-down system with SOTA's Reflex Clamp

Floating Seismic Platform™ suspension with 10kg balanced sub-chassis hung with a 4-point spring suspension system

Internally dampened, multi-layered platter

Inverted bearing design with sapphire thrust plate

Bolt-through multi-layer armboard block mounting

Electronic flywheel, Ultra-regulated, high speed power supply for motor system

Electronic speed control and speed change

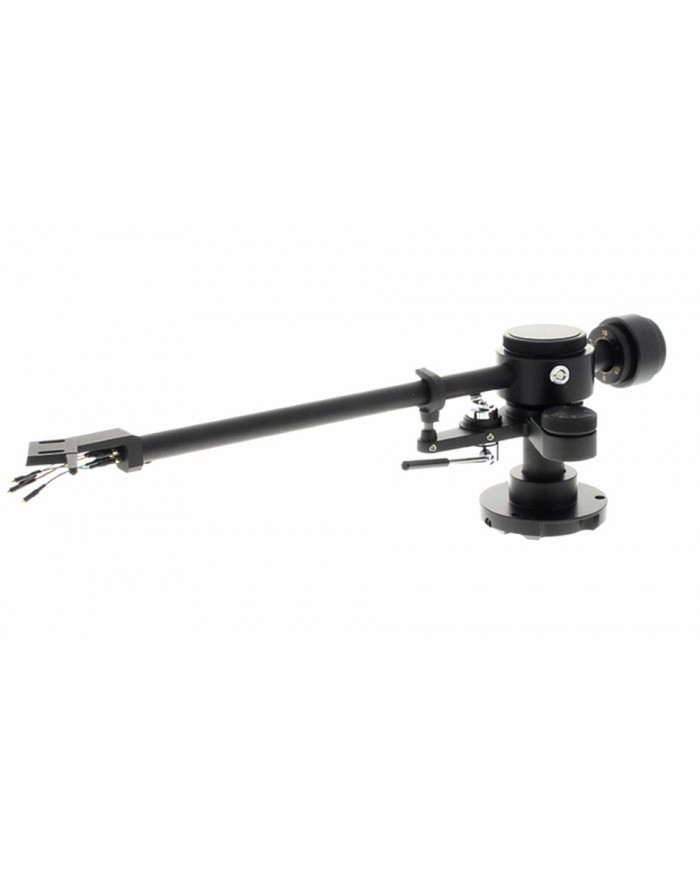

Interchangeable tonearm capability

 Specifications:

Vacuum system: Electronic-sensing, provides LP clamping vacuum pressure of 3.0" Hg, +/-0.2" Hg

Motor: High efficiency A/C motor with double regulated, synthesised sine wave drive and balanced pulley Electronic flywheel with ultra-regulated, high-speed power supply for motor system

Platter: Individually balanced 6.5kg 1-piece cast platter with internal damping, lead flywheel ring Acrylic Supermat, molded silicone vacuum lip and anti-static Groove Damper mat

Bearing: Thrust pad - polished sapphire disc; thrust point - hardened chrome steel ball

Suspension: Tuned 4-point sub-chassis, stretched spring 2.55Hz frequency

Shaft: Hardened steel, hand matched to sintered bronze sleeves

Transmission: Belt driven

Speeds: 33 1/3 and 45 RPM, electronically switchable with fine tuning

Rumble: < -60dB unweighted (10cm/sec @ 1000Hz)

WOW & Flutter: < 0.04% RMS

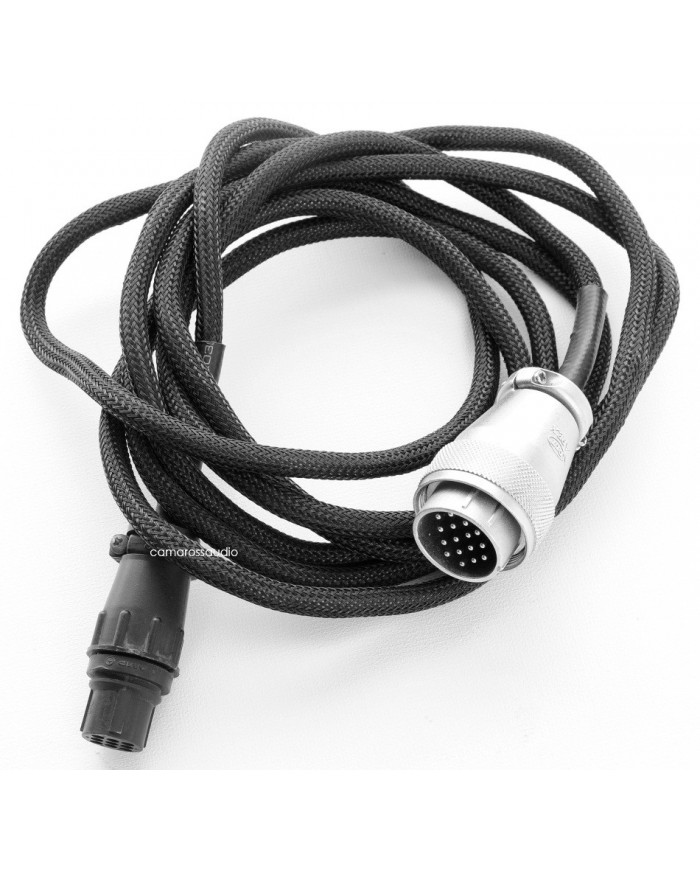

Vakum ve power ünitesi ile ana gövde bağlantı kablosudur.

Clamp

Masif ahşap gövde (kaplama değildir)
