Cambridge Audio Azur 840C Cd Player DAC

Cambridge AudioCambridge Audio

CA117

Kullanılmış



cambridgea%20udio%5B1%5D.jpg?psid=1

Azur 840C CD Player & DAC



Azur 840C, diger tüm Azur serisinde oldugu gibi yüksek seviyeli performansı ve harika işciliği ile fiyatının çok ötesine geçmektedir.

840C, ATM (Adaptive Time Filtering) ile, Isvicrede üretilen Anagram teknolojisini kullanarak, ve 32Bit Analog Device Black Fin DSP (digital signal processor) marifeti ile, 16bit/44.1Khz CD yi,  24bit/384Khz , yüksek örneklemeye çevirerek, iki adet 24bit/384kHz DAC, cift diferansiyel formasyonda besleyebilen özellikleri bünyesinde barındırmaktadır.

Her bir DAC kanal başına mükemmel stereo imaji ile, sıradısı düşük distorsyon ve gürültü ile difransiyel olarak çalışmaktadır.

Hem balanced hem de unbalanced CA XLR çıkışlar mevcutdur. Azur 840C bünyesindeki 2 adet dijital girişleri ile,  DVD ve benzer kaynaklara yüksek örnekleme ile çalabilme imkanı sunmaktadır.

Ayrıca, kayıt için dijital bir çıkısı ile her bir bit bilgisini ya da yüksek örnekleme bilgisini 48/96/192 kHz olarak , uygun bir cihaz tarafından kayıt imkanı sunmaktadır.

Infrared uzaktan kumanda ile control edilebilen Bus kontrolu giriş-çıkışları ve RS232 portu ile, çoklu oda aktiviteleri için uyumludur.

RS232 protokolu, üçüncü şahıs ev otomasyonlarında , dokunmatik ekranlı, iki yollu arayüz imkanı sunmaktadır.

Diğer tüm Azur ürünlerinde oldugu gibi, 840C nin diğer bir olgusu da, özel tasarlanmış şasesidir. Bu şase, 7mm ultra kalin panelleri el isciligi ile aluminyumdan yapılmış olup, 2mm çelik taban plakası, resonans önleyici ayaklarla bütünlestirilmiştir.

Sonuç, ultra saglam, düşük rezonanslı, akustik dampingli bir platformun içine oturtulmuş elektronik devrelerdir.

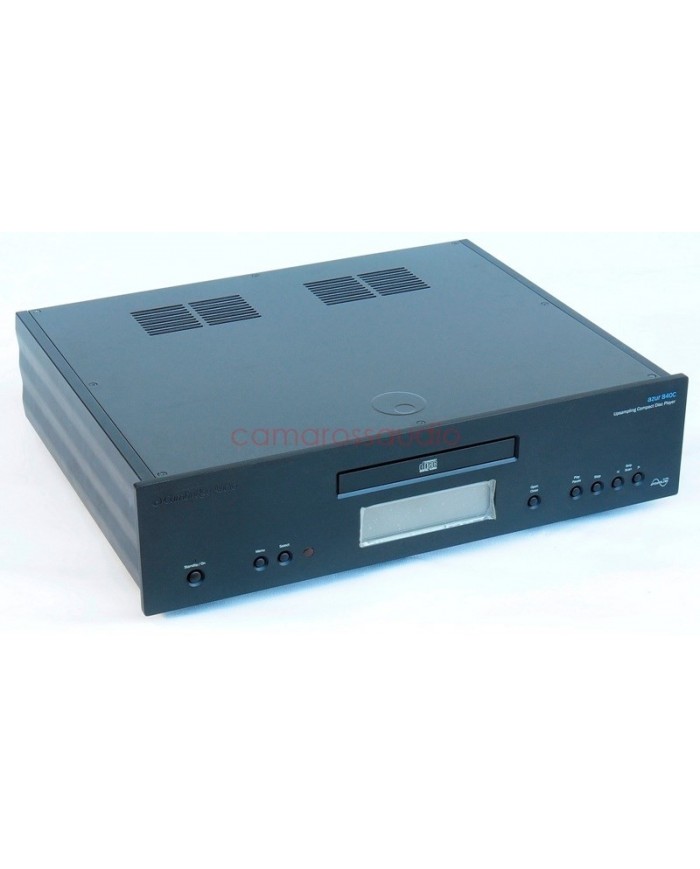

1 - Standby/On Switches the unit between Standby mode (indicated by dim power LED)
and On (indicated by bright power LED). Standby is a low power mode
where the power consumption is less than 10 Watts. The unit should be
left in Standby mode when not in use.



2 - Menu Press to scroll through 840C menu screens. Please refer to the
‘Operating instructions’ section of this manual for more information

3 - Select Press to select between CD Playback or Digital Inputs 1 and 2. Also used
to toggle through the options on selected menu screens. Please refer to
the ‘Operating instructions’ section of this manual for more information.

4 - Infrared sensorReceives IR commands from the supplied Azur remote control. A clear
unobstructed line of sight between the remote control and the sensor is
required

5 - Disc tray Compact Disc tray. Use the Open/Close button to activate.

6 - Display LCD used to display upsampling rate, CD track number,
elapsed/remaining time and other CD functions. Please refer to the
‘Operating instructions’ section of this manual for more information.

7 - Open/Close Allows you to open and close the disc tray thus making it possible to load
a disc. Pressing Play will also close the tray and start the CD.

8 - Play/Pause Plays the disc and pauses play.

9 - Stop Stops the CD playing.

10 - Skip/Scan Allows for skipping between tracks and also searching within tracks.
Press once to skip a track, press and hold to search within a track.

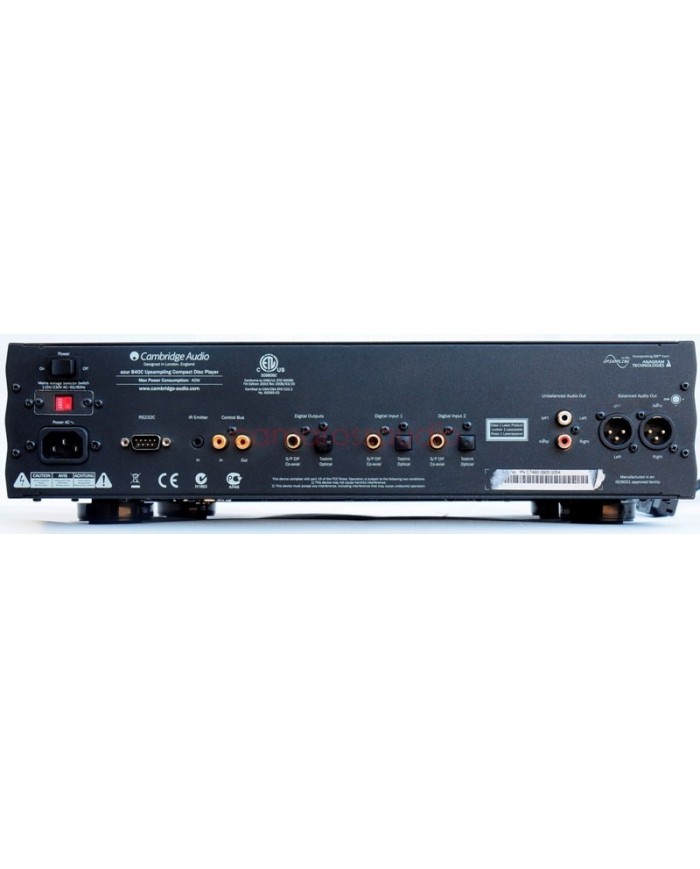

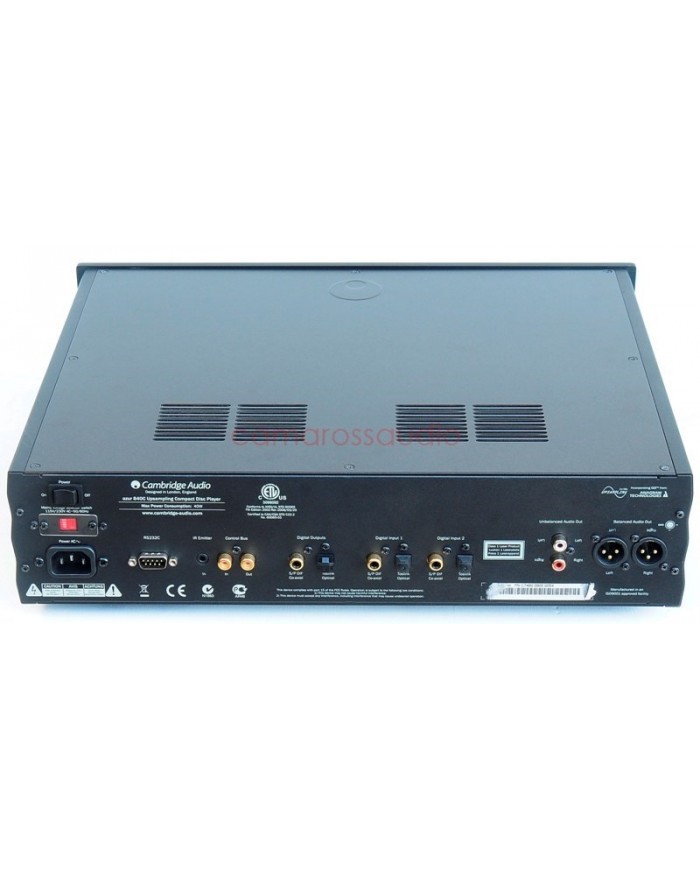

1 - Power On/Off Switches the unit on and off.

2- Mains Voltage Selector Switch Switches the mains voltage between 115V and 230V. For use by
installer/dealer only.

3 - AC power socket Once you have completed all connections to the amplifier, plug the AC
power cable into an appropriate mains socket then switch on. Your
compact disc player is now ready for use

- RS232C The RS232C port allows some external serial control of the 840C for
custom install use. A command set is available on the Cambridge Audio
website at This port can also be used by
Cambridge Audio service personnel for software updates.

5 - IR (Infra Red) Emitter In
Allows modulated IR commands from multi-room systems or IR repeater
systems to be received by the amplifier. Commands received here are
not looped out of the Control Bus. Refer to the ‘Custom Installation’
section for more information.

- Control Bus In - Allows un-modulated commands from multi-rooms systems or other
components to be received by the unit.


7 -Out - Loop out for control bus commands to another unit.
Digital outputs
The digital outputs allow a separate DAC or digital recording device to be
connected. The sophisticated DSP software in the 840C even allows
these outputs to be set to output raw (pass through) or upsampled data
independently from the main audio outputs. Refer to the ‘Operating
instructions’ section for more information.
S/P DIF CO-axial Digital - To obtain best results, use a high quality 75
ohm digital RCA interconnect cable (not one designed for normal audio
use).
Toslink Optical Digital - Use a high quality TOSLINK fibre optic
interconnect cable designed specifically for audio use.
Only one of the two output types should be used at a time

8 - 9 - & Digital Inputs 1 / 2 The digital inputs allow the digital outputs of other source components
to be connected to the 840C. The 840C can then act as a very high
quality upsampling DAC, improving the sound quality of the connected
sources. Two digital inputs allow two external sources to be connected: S/P DIF CO-axial Digital - Use a high quality 75 ohm digital RCA
interconnect cable (not one designed for normal audio use).
Toslink Optical Digital - Use a high quality TOSLINK fibre optic
interconnect cable designed specifically for audio use.
Only one of the two input types for each input should be used at a time

10 - Unbalanced Audio Out
Single-ended conventional stereo outputs for connection to the line-level
phono/RCA inputs of an amplifier.

11 - Balanced Audio Out

Teknik ve kozmetik olarak en küçük kusuru yoktur,

CD Player ve DAC olarak kullanılabilir,

kısa süreli (tekil kullanıcı tarafından) özenle kullanılmıştır,

kopya cd okur,

%100 orijinaldir.





Cambridge%20audio%20AZUR%20840C%20camaro
